Simple distribution example planning from store to warehouse to supplier

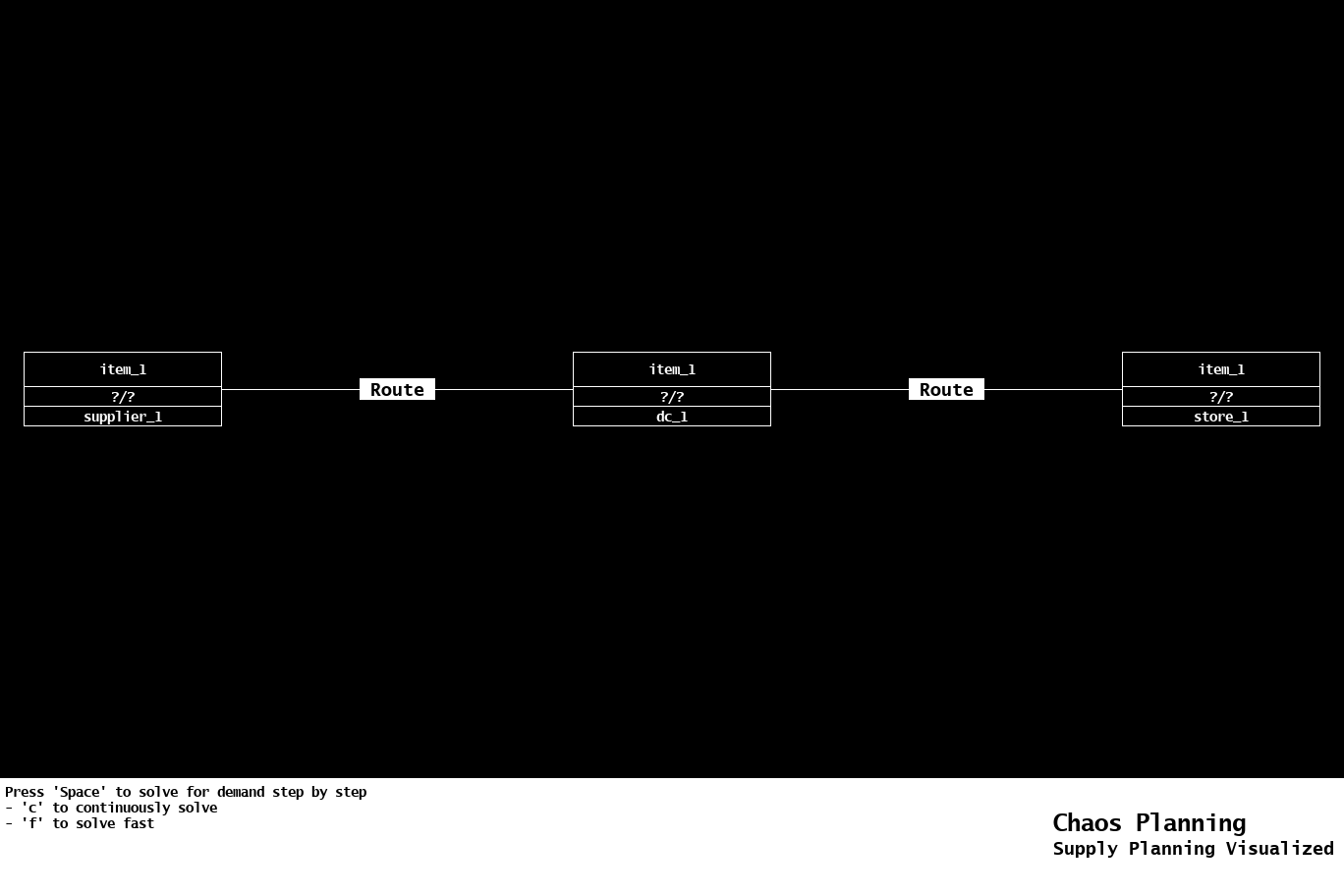

The one store example demonstrates how a supply chain solver searches the network for supply of 1 widget. The demand is incident on the store, so the solver starts there before searching upstream at the warehouse and then the supplier.
Only the supplier has infinite inventory of widgets in this example. Once the solver has found the 1 needed widget there, it returns to the supply to the warehouse and then the store. This movement of the widget is considered a shipment.
| location | item | need_date | demand_qty | demand_key |
|---|---|---|---|---|
| store | widget | 5/30/2024 | 1 | store_demand |
| item | location | genesis | image |
|---|---|---|---|
| widget | supplier | True | supplier.png |
| widget | warehouse | False | warehouse.png |
| widget | store | False | store_drawing.png |
| item | from_location | to_location | lead_time_days |
|---|---|---|---|
| widget | warehouse | store | 10 |
| widget | supplier | warehouse | 10 |
| item | location | activity | activity_date | pegged_qty | demand_key |
|---|---|---|---|---|---|
| widget | supplier | 0_item_genesis | 2024-05-10 | 1 | store_demand |
| widget | supplier | 7_shipment_from | 2024-05-10 | 1 | store_demand |
| widget | warehouse | 2_shipment_to | 2024-05-20 | 1 | store_demand |
| widget | warehouse | 7_shipment_from | 2024-05-20 | 1 | store_demand |
| widget | store | 2_shipment_to | 2024-05-30 | 1 | store_demand |
| level | from_location | to_location | item | ship_date | arrival_date | shipment_qty | demand_key |
|---|---|---|---|---|---|---|---|
| 1 | warehouse | store | widget | 2024-05-20 | 2024-05-30 | 1 | store_demand |
| 2 | supplier | warehouse | widget | 2024-05-10 | 2024-05-20 | 1 | store_demand |

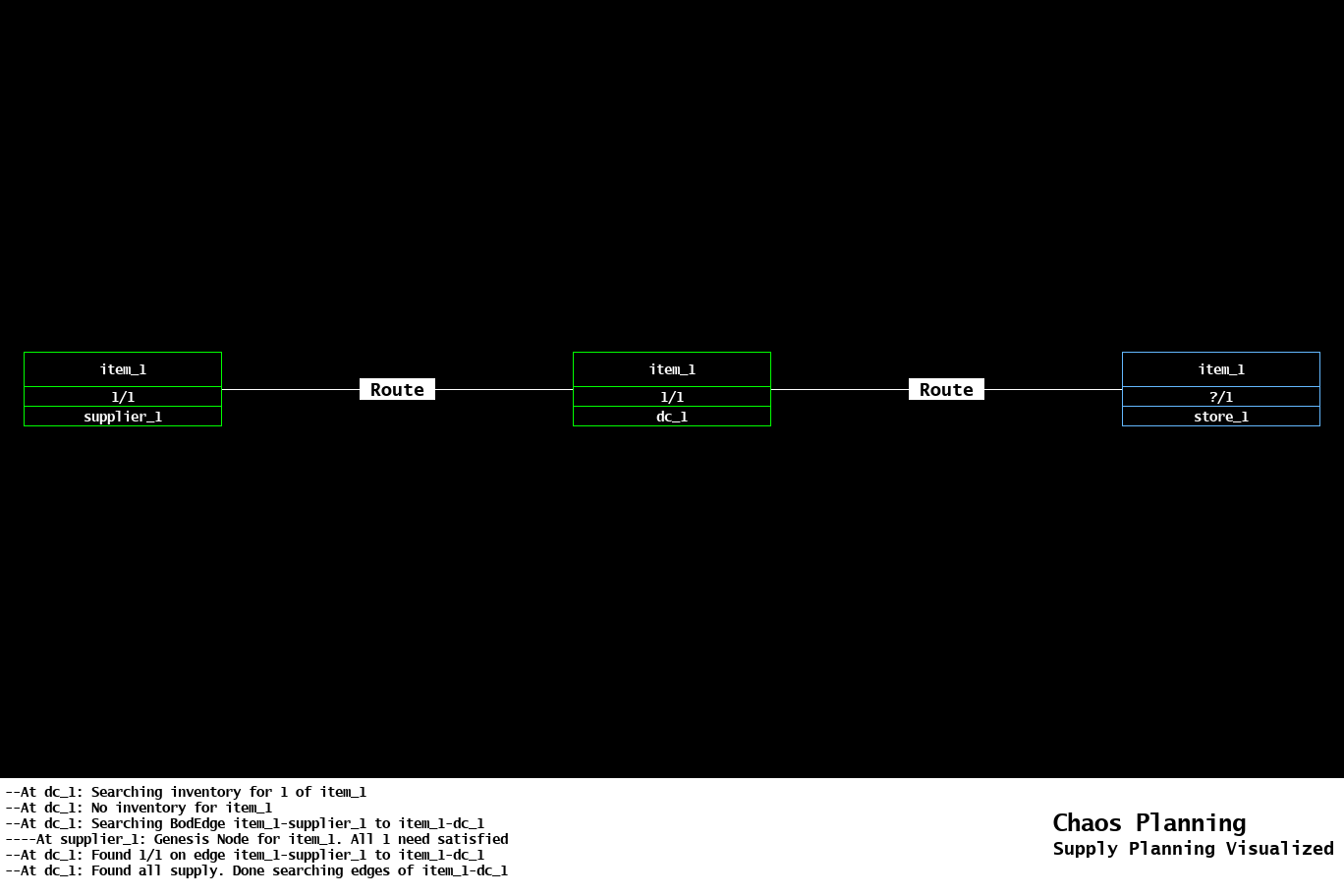

Loading Supply Chain Network from Files Required BOM files missing... will solve without BOMs Running obo Solver ***Starting to plan for demand key store_demand*** At store on 2024-05-30: Searching inventory for 1 units of widget At store: No inventory for widget At store: Searching BodEdge widget-warehouse to widget-store with LT 10.0 days --At warehouse on 2024-05-20: Searching inventory for 1 units of widget --At warehouse: No inventory for widget --At warehouse: Searching BodEdge widget-supplier to widget-warehouse with LT 10.0 days ----At supplier on 2024-05-10: Genesis Node for widget. All 1 need satisfied --At warehouse: Found 1/1 on edge widget-supplier to widget-warehouse --At warehouse: Found all supply. Done searching edges of widget-warehouse At store: Found 1/1 on edge widget-warehouse to widget-store At store: Found all supply. Done searching edges of widget-store ***Found 100.00% supply for demand key store_demand*** Solver complete. Writing output
